1 SDI & HDSDI Over Fiber MINI Extender

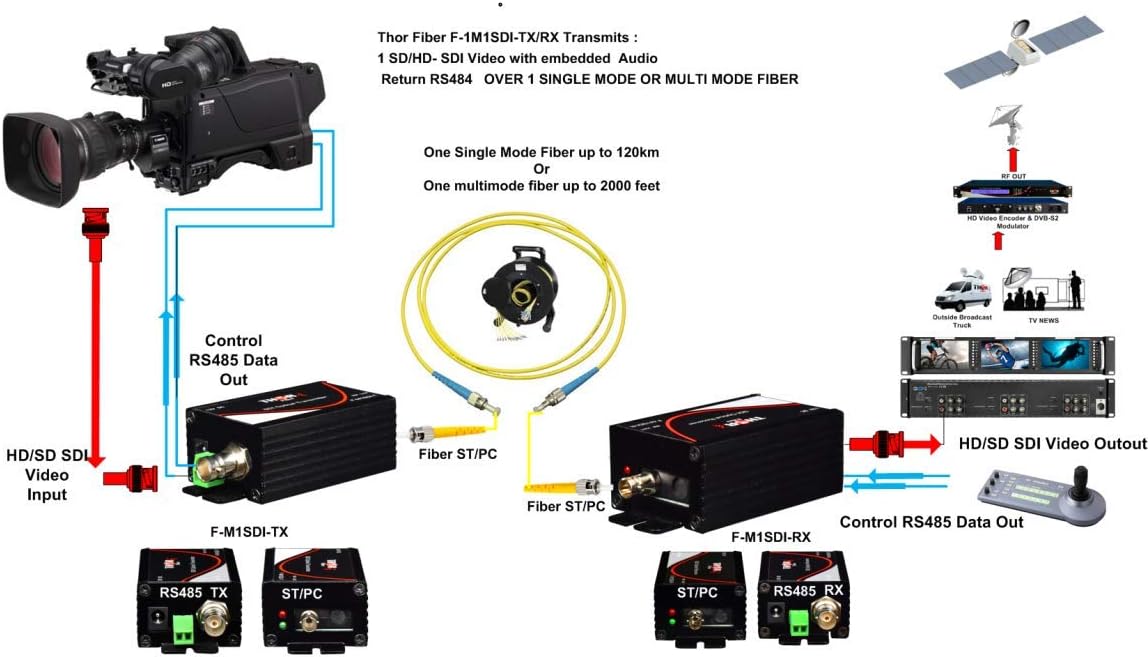

Thor compact SDI fiber extender kits are designed to increase the range of digital SD-SDI or HD-SDI video signals over single-mode or multimode fiber optic cable. SDI is normally carried over coax cable on BNC connectors, however, the maximum cable distance is limited to around 100 meters. Thor SDI extenders increase this distance to more than 80 miles by using lasers to send the data over fiber cable. TX/RX kit F-M1SDI-TX/RX with ST/PC connector supports single-mode fiber up to 20Km or 2000 feet over multimode fiber Cabled (coax-to-fiber) throw-down converter compact, rugged, and portable converter boxes. Super-easy to use, supports SMPTE 424M, 292M, and 259M as well as ASI and MADI audio. Its wide operating range from 5Mbps to 1.5Gbps, (3G-SDI 3Gbps model available*) supports most professional digital serial communications. Full error-free pathological pattern operation is fully compatible with professional fiber video interfaces.

• Supports full rate HD-SDI @ 1.5Gbps or lower SDI or ASI digital video
• Transports embedded audio channels as well as SDI ancillary data
• Return path serial RS-485 channel for controlling equipment on Tx end
• Link alarm indicators on both Tx & Rx indicate a problem with the fiber. Status indicators for data rate and lock
• Free technical support for any Thor Fiber product Monday - Friday 9AM to 3PM Pacific Time
